Information & Sample Instruction Sheet

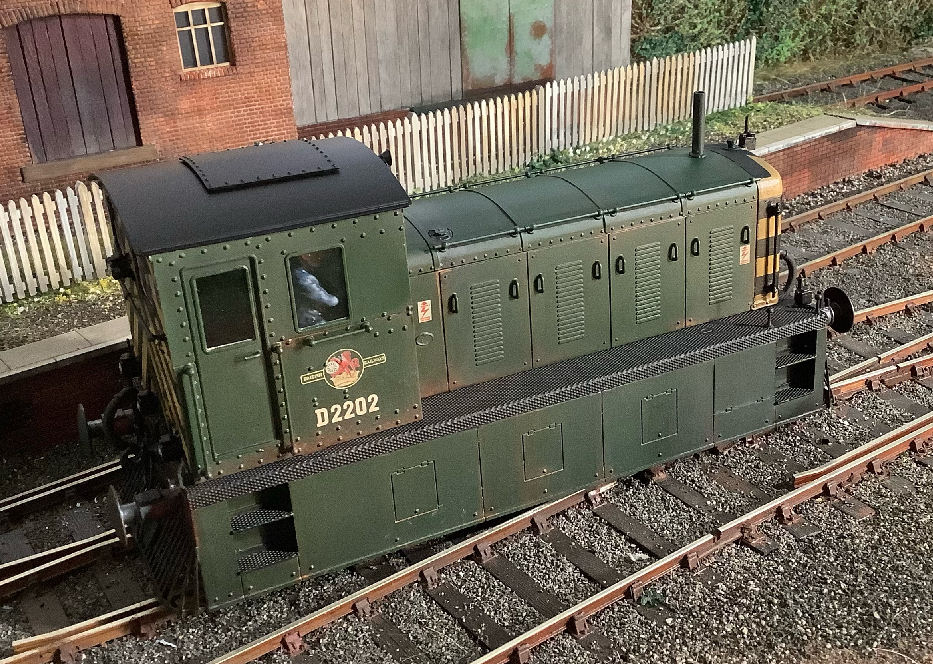

Drewry 204hp, 0-6-0 Diesel Shunter
British Railways Class 04
  PROTOTYPE. The Drewry Car Co supplied bespoke Diesel Mechanical Shunting Locos to operators throughout Britain & across the world. They were configured to individual railways requirements. A manufacturers Catalogue displayed the range of locos & options available.
  These 204hp, 0-6-0’s, built in considerable numbers, were developed as a larger and more powerful complement to the original 153hp 0-4-0 that had proved highly successful.
  British Railways purchased from 1952, 15 locos of this initial design, D2200 - D2203 noted for working on the Wisbech & Upwell Tramway & D2204 - D2214 distributed throughout the British Railways system. A number of these locos remain in operation today on preserved railways & heritage sites.
Fenland On Film


Download 1957
Drewry Catalogue
  KIT. A sophisticated etched kit which has a level of finish & detail that will enable it to sit alongside the excellent factory produced locomotives from Heljan, Dapol & Minerva. Alternative parts are included to enable the modelling of a BR class 04 for main line & tramway working or a loco supplied direct for industrial operation.
Kit Reference Code
CL - Drewry 060
Kit Price £280.00
Print Off Order Form pdf file
- Additional Components Required to Complete -

Link to Prototype Information

- Motor and Gear Set -
I recommend my own 1833 motor and 40/1 gear set.
More Information About Motors
- Wheels -
1 X Slater’s 040 Drewry Shunter Wheel Pack
(Slater’s Catalogue Number 7839id)
this pack contains 4 X wheels, 3 X axles, 6 X crankpins.
1 X Slater's 3'3" Driving Wheel (Slater's Catalogue Number 7839id)
this pack contains 2 X wheels, 1 X axle, 2 X crankpins,
everything additional required for 060 Drewry Shunter.
Slater’s Plastikard, Old Road, Darley Dale, Matlock, Derbyshire, DE4 2ER, Telephone 01629 734053, Fax 01629 732235.
More Information About Wheels
- Optional Plunger Electrical Pickups -
If these are desired as an alternative to the wire wiper pickups that are included in the kit. I would recommend the type produced by Slater's and provision is made in the kit chassis for fitting these (Slater's Cat No 7157).
More Information About Pickup Systems
Approximate Cost of Completing The Model
Kit - £280 + Motor/Gears - £45 + Slaters Wheels - £90.50 = £415.50
- Download Drewry, 0-6-0, Instructions as pdf Print Off -
  Downloading these instruction booklets will allow you to evaluate the kit and its construction and help you to determine its suitability for yourself and your project. The booklet is made up of two parts :-
