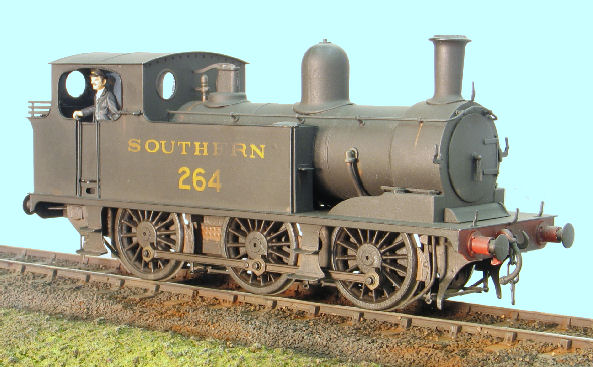

Southern Railway Class G6, 0-6-0 Tank

  PROTOTYPE. Built by the LSWR, this class of locomotive was mainly used for shunting, but they were brake fitted for working passenger stock. They lasted well into BR days.

  KIT. The main body components are etched in brass. All the chassis parts are nickel silver. The fit of all parts on this uncomplicated locomotive is very good. This is one of my earlier kits and there is no cab interior detail. The instructions are well illustrated.

Kit Reference Code
CL - G6
Kit Withdrawn From Production
September 2016
Casting Moulds Life Expired

Print Off Order Form pdf file
- Additional Components Required to Complete -
Link to
Prototype information
- Motor and Gear Set -
I recommend my own Mashima 1833 motor and 40/1 gear set.
More Information About Motors
- Wheels -
3 Sets 4'10", 16 spoke driving wheels (Slater's Catalogue Number 7858SW), Slater’s Plastikard, Old Road, Darley Dale, Matlock, Derbyshire, DE4 2ER, Telephone 01629 734053, Fax 01629 732235.
More Information About Wheels

- Optional Plunger Electrical Pickups -
If these are desired as an alternative to the wire wiper pickups that are included in the kit. I would recommend the type produced by Slater's and provision is made in the kit chassis for fitting these (Slater's Cat No 7157).
More Information About Pickup Systems
Approximate Cost of Completing The Model
